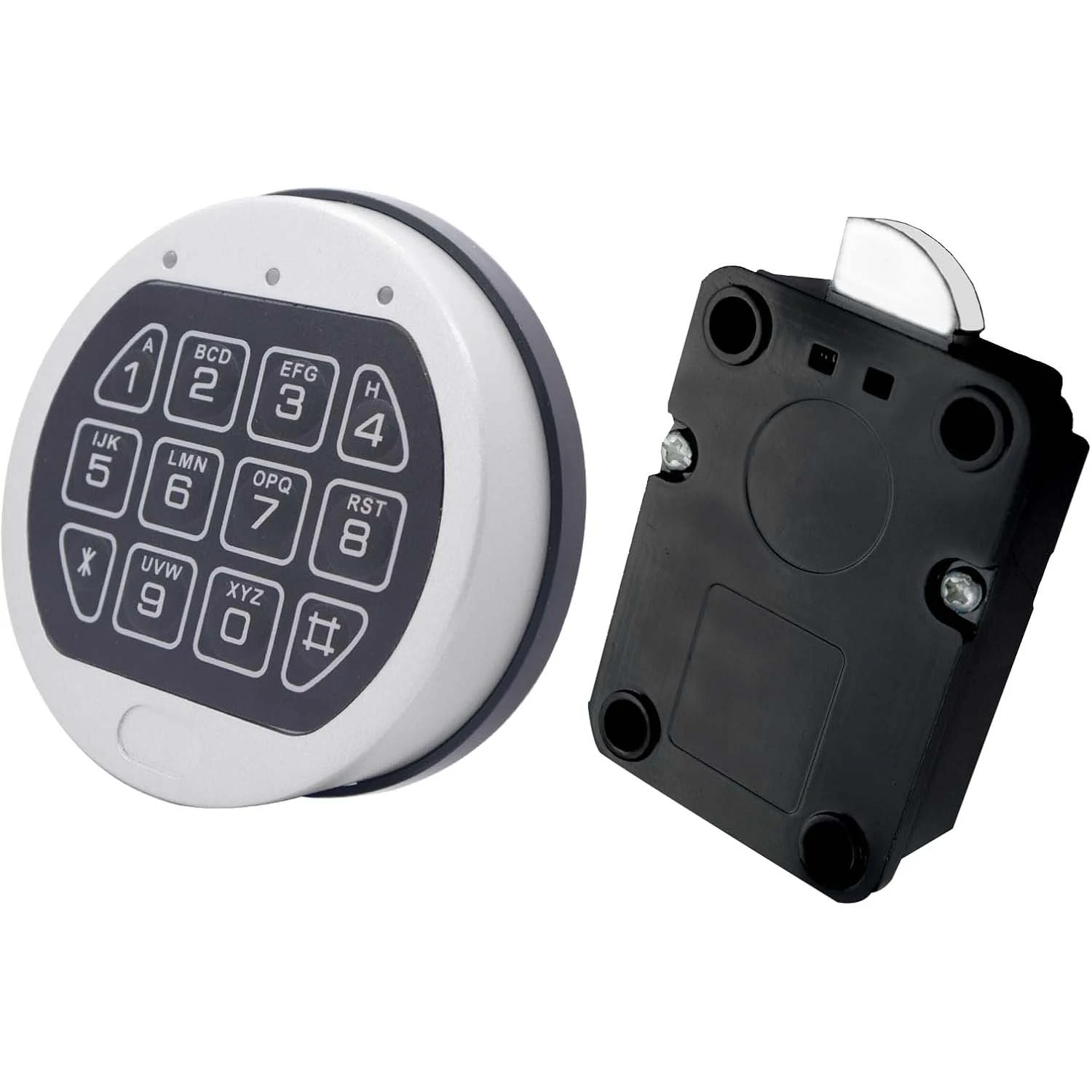

Gun Safe Lock Replacement Chrome Keypad Electronic Safe Lock

About this item

• 【PEMIMSAFE LOCK SETS】The safe lock consists of a panel, a swing bolt,a reset line (green) and a motherboard (PCB), operated by an electromagnetic locking mechanism, more confidential!
• 【HIGH QUALITY】Fireproof Strong Durability Electronic Safe Lock for physical protection, enhanced durability and extremely strong dummy codes to prevent forced entry and lockout mode!
• 【EASY TO USE】Our security lock management code and user password, able to set 3 to 8 numeric passwords, press # to unlock, and can be changed to the password you want at any time, more convenient and fast!

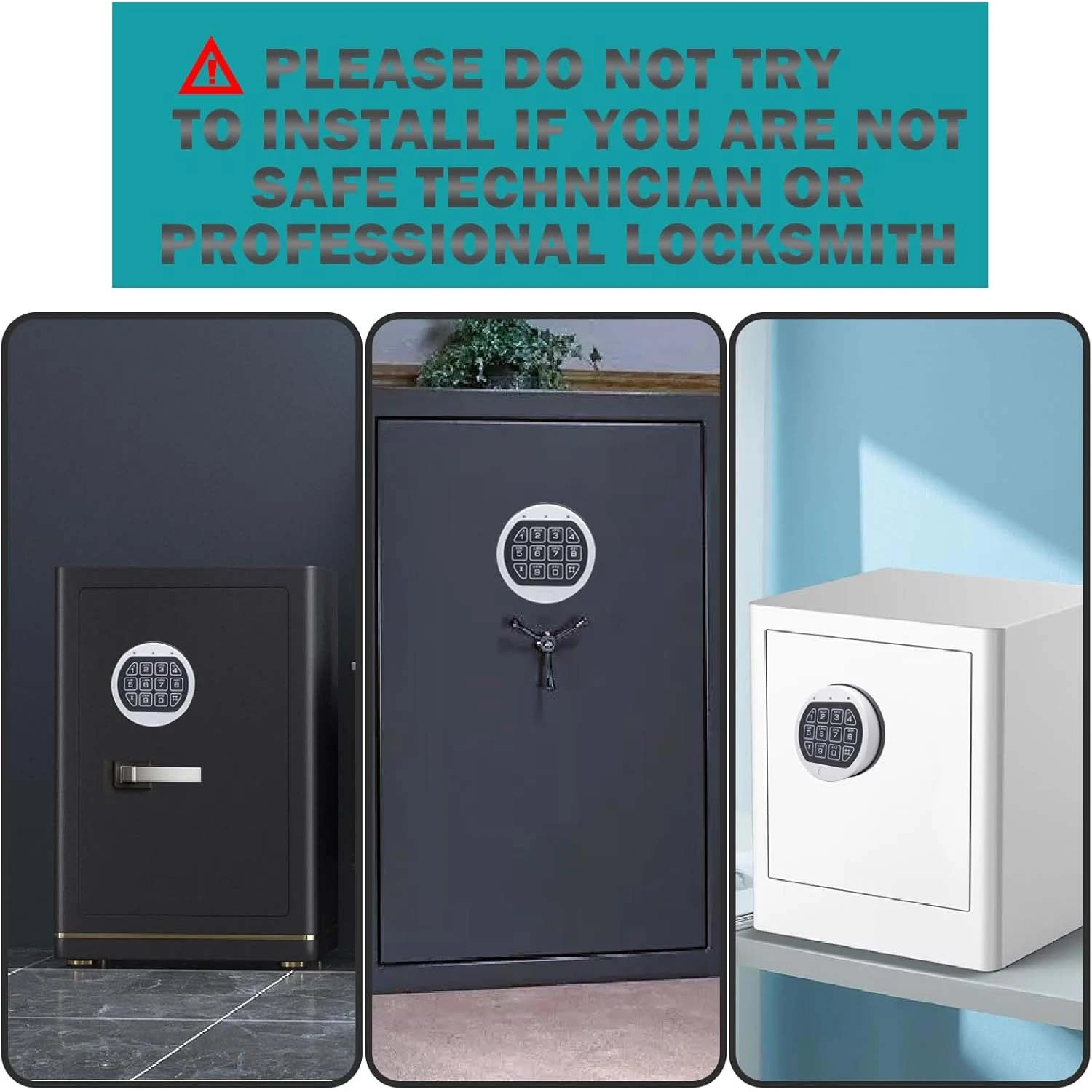

• 【APPLICATION SITES】Keypad security solenoid lock replacement for all kinds of home safes and lockboxes, gun safes, pistol safes, hotel safes, cabinet safes, coin-operated safes and more!
• 【SERVICE & NOTE】If you are not a safe technician or professional locksmith, please do not attempt the installation. If you encounter any problems or difficulties, please contact us and we will provide one-on-one service to help you solve your problem!

  Product Description

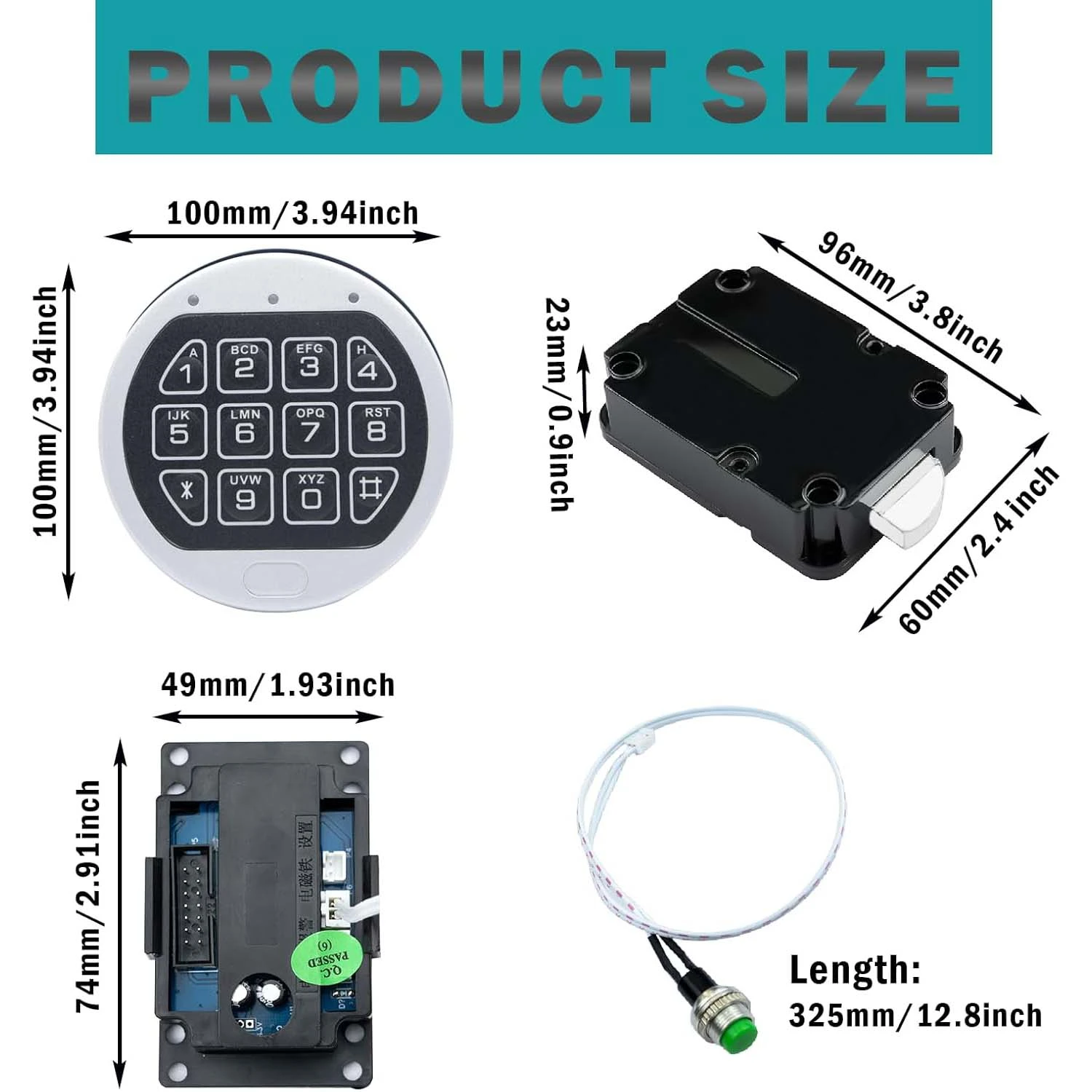

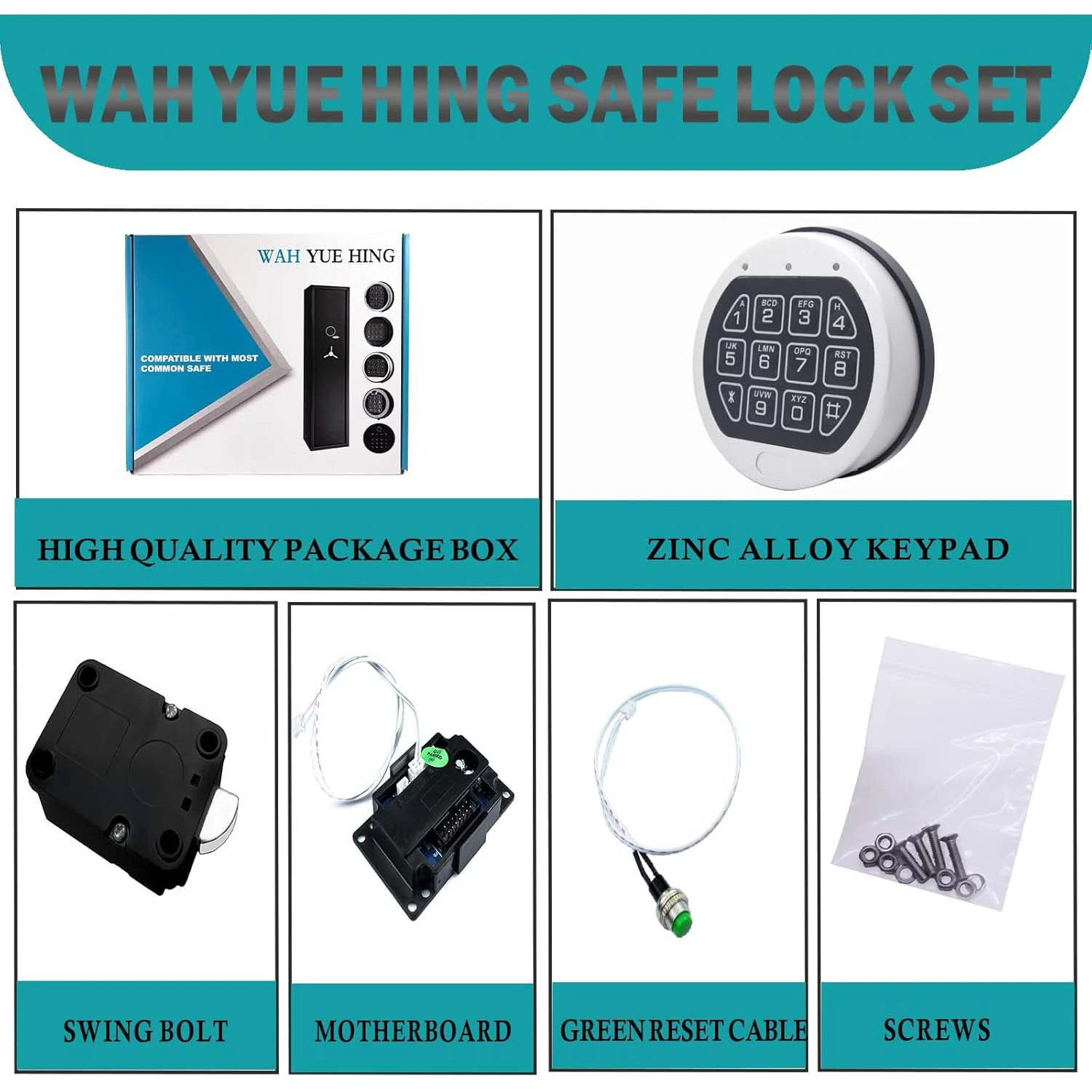

  Package including：

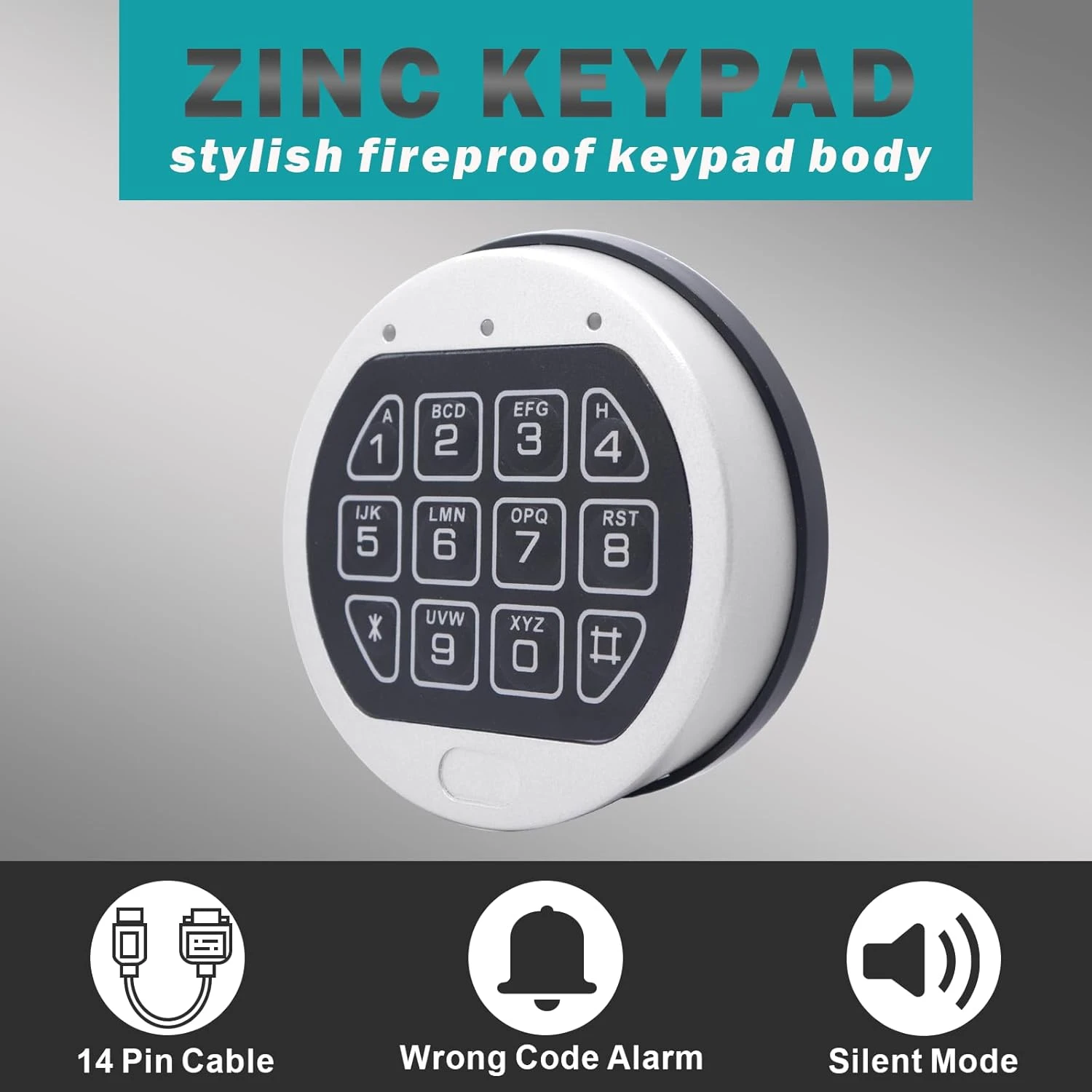

  1PCS Zinc Alloy Keypad

  1PCS Motherboard

  1PCS Programmer Cable

  1PCS Swing Bolt

  1PCS High Quality Package Box

  4x Screws

  Fire & Drill & Drill Proof & Theft Proof

  1、High Standard Grade Zinc Alloy Panel with Fireproof Protection.

  2、Anti-drill and Anti-Pick.

  3、Wrong password lockout mode.

  4、Password is secured & stored when out of battery.

  APPLICATION:

  1、All home safes & lock box, gun safes, pistol safes.

  2、Gun safes, watch winder, file cabinet safe and more.

  High Security Fireproof Safe Electronic Lock

  • Code Length: 3-6 digits 77 / 100 x
  • Static current: 10u A
  • Battery life span: About one year
  • Battery low voltage: 4.6 +-0.3V
  • Bolt type: Swing Bolt Zinc Alloy internal moving part lock kit Actuation time: 5s



  INSTRUCTION MANUAL

  Please test the lock firstly for safe installation, please connect all the parts accordingly otherwise the lock will not work.The electronic lock can be set with 2 sets of passwords, management code and user code and the password length is fixed to 6 digits.Factory state: management password 1-2-3-4-5-6, no user code.

  HOW TO SET CODE：Press the red button and then release it; you will hear a beep. A yellow light on the panel and stay on for a period of time, you need to enter 0-0-0-0-0-0 to enter the password set code while the yellow light is illuminated, and there are indicator lights and sound reminders. (yellow light on) Enter the original 6-digit password:123456 (yellow and red lights are on at the same time when correct)If the original password is correct, continue to enter the new 6-digit password, repeat 2 times.

  UNLOCKING METHOD：If the number of consecutive wrong password input is greater than or equal to 3 times, the system will be locked for 5 minutes, TAfter 5 minutes, the system returned to normal. The number of errors will be cleared after entering the correct password to open the door.

  Enter 1-1-* (asterisk) to enter the user code setting.

  Enter the 6-digit user password and repeat the confirmation once.Enter 2-2-* (asterisk) to delete the user password.

  REMINDER: This lock operates one V9 ALKALINE battery and when the battery is at low voltage the red light is on to remind the user to replace the battery in time.

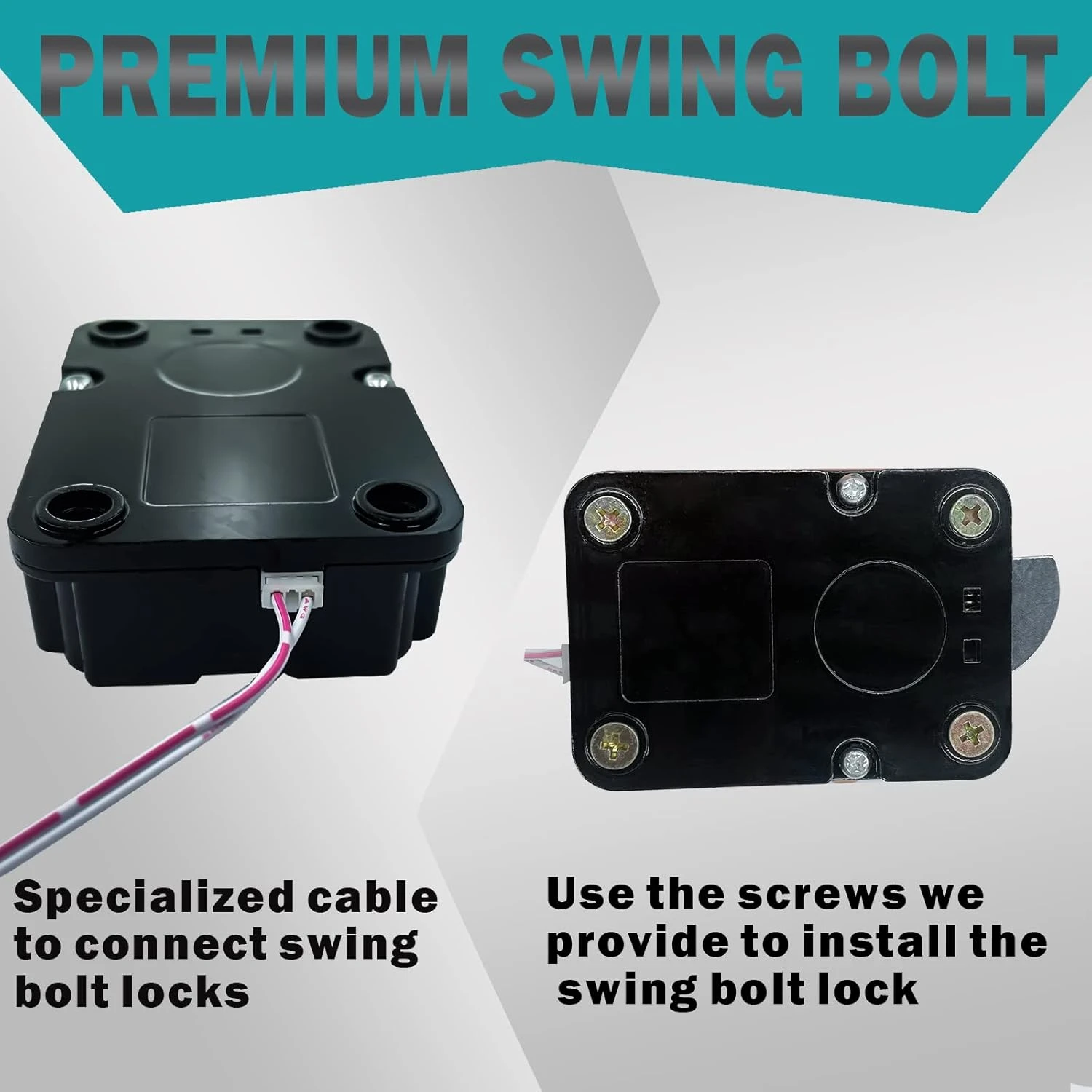

  HOW TO USE SWING BOLT LOCK



  Before you use the swing bolt, be sure to power it up for inspection, connect the swing bolt to the pcb board using the cable we provide, and press the green button to use it afterwards!

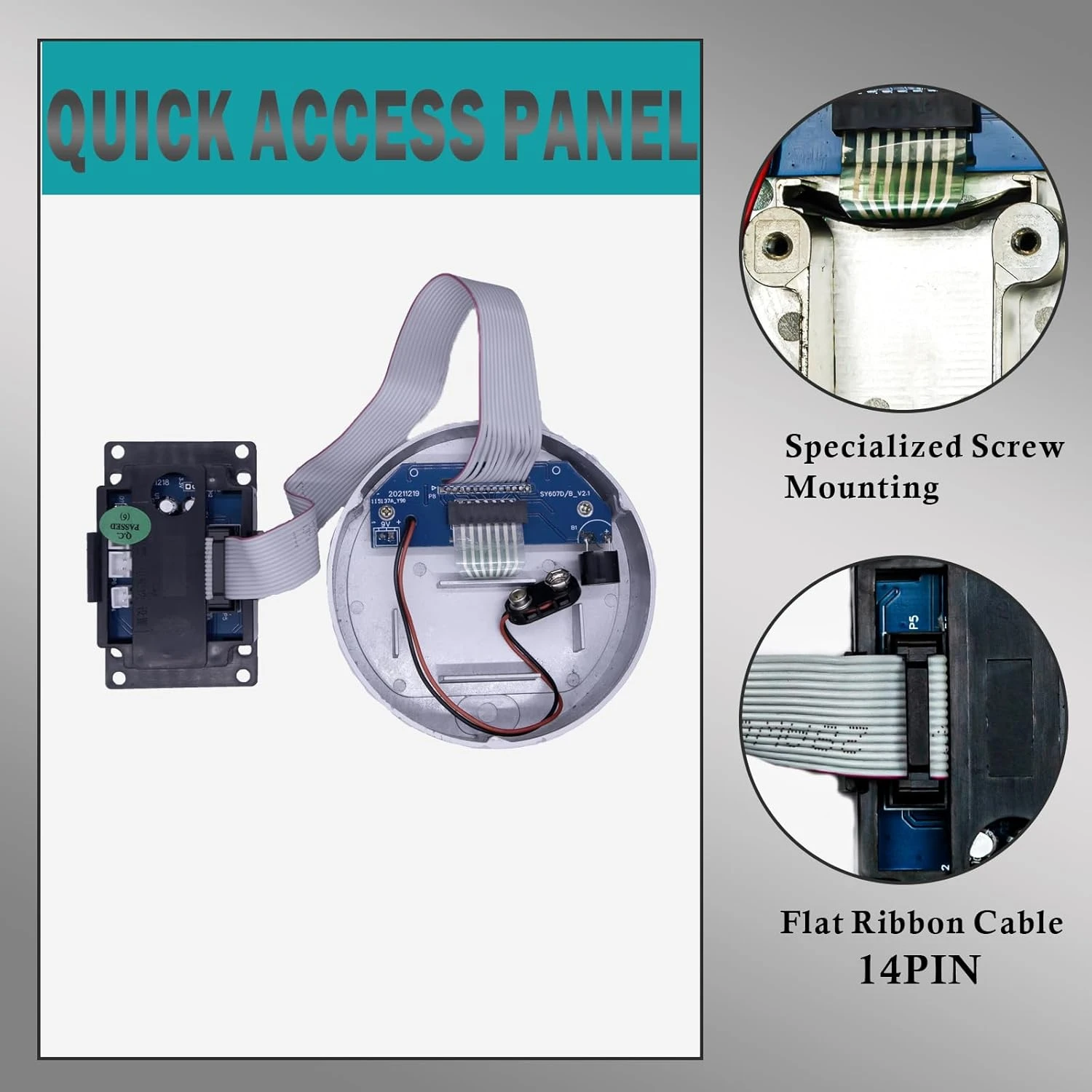

  MOTHERBOARD FLAT RIBBON CABLE



  Motherboard with flip clip. Swing Bolt, programming cable and keypad cable need to be inserted in order to use the keypad！

  GREEN CABLE



  Use the green cable we provide for programming new codes or deleting old ones and for switching the entire safe lock on and off!
